Quadrodec Galva

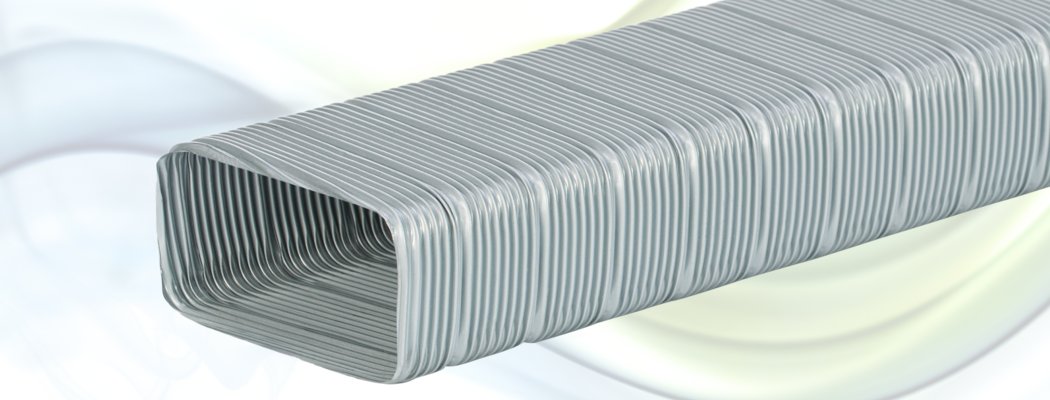

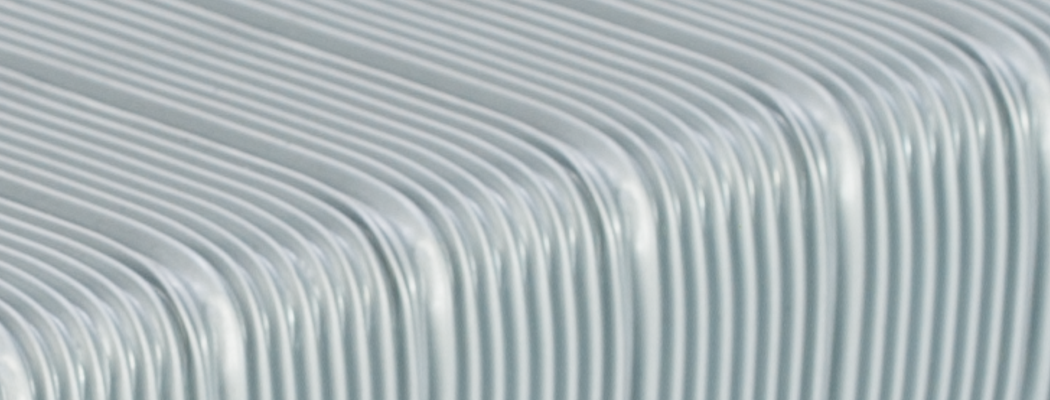

The Quadrodec Galva is a semi-flexible duct, constructed from one layer of corrugated galvanized steel. The special seamed joint creates a very high air tightness and flexibility.

environment

  • sustainable
  • 100% recyclable

characteristics

  • space saving
  • excellent mechanical properties
  • lightweight
  • can be combined with the Connectdec, Smoothdec and other DEC products
  • easy to install
  • time and energy saving

application

  • suitable for mechanical air supply systems and air conditioning systems
  • in systems where fumes are extracted
  • above mentioned systems, where a special mechanical strength is required
Specifications
temperature range: -30 °C to 375 °C
operating pressure: max. +3000 Pa
operating air velocity: max. 30 m/s
bending radius: min. 1.0 x ∅
diameter range: see ordering info
standard length: 1 mtr
Construction
number of layers: 1
whereof galvanized steel:
1
appearance: galvanized grey
Technical specifications
Dutch specification
German specification
English specification
Graphs

pressure loss (download as .PDF or as .PNG)

Product images
Certificates
Europe
EN 13501-1 A1
NEN 13180

The Quadrodec Galva fulfills all the requirements and are classified as specified within NEN 13180: "Ventilation for buildings – Ductwork - Dimensions and mechanical requirements for flexible ducts".

110x54 DSDX(80)110x54/1 1 n.a.
140x54 DSDX(80)140x54/1 1 n.a.
180x54 DSDX(80)180x54/1 1 n.a.
195x54 DSDX(80)195x54/1 1 n.a.
150x70 DSDX(80)150x70/1 1 n.a.
