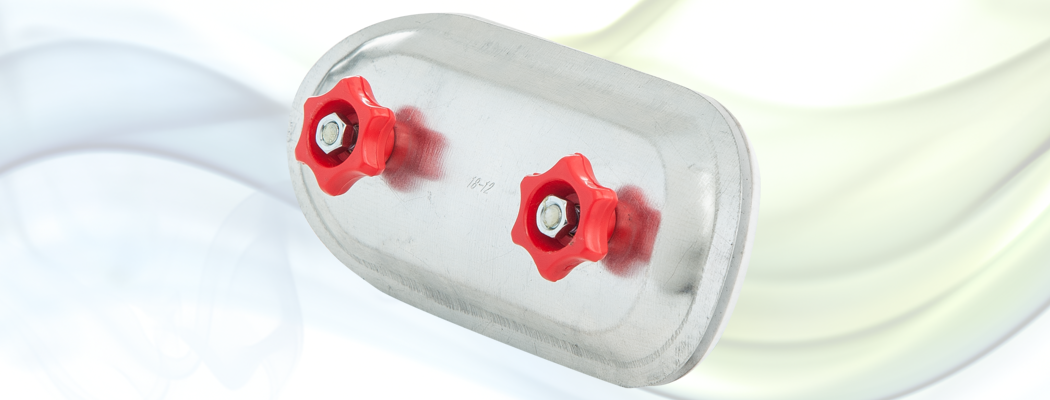

IPDC curved inspection door
The high quality IPDC curved inspection doors are used in air duct systems for controlling fire dampers, control and shut off dampers, batteries and other parts of a duct system. Access doors allow easy admittance to the ventilation ducting for the purpose of inspection and cleaning.
mounting
Each IPDC is delivered with a self adhesive drilling template
construction

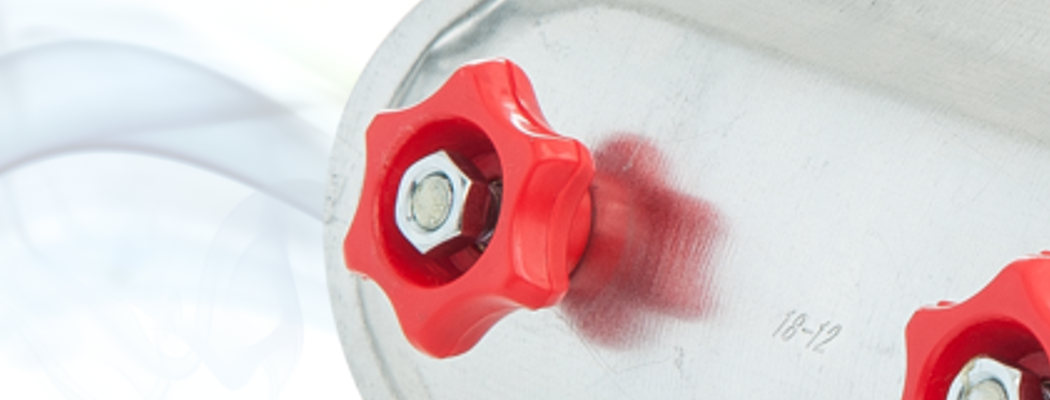

The IPDC has been constructed from a galvanized frame with a double-walled panel. Quick-acting closures see to that taking off and putting back the panel will take no more than a second.
|
Specifications |
|
|---|---|
| material hatch: | galvanised steel |
| material sealing gasket: | pvc |
| operating pressure: | min. -5000 Pa - max. 5000 Pa. |
| temperature range: | -70 °C to 70 °C |
| dimensions: | see ordering info |
|
Technical specifications |
|
|---|---|
Dutch specification |
|
German specification |
|
English specification |
|
Product images
|
|
|---|---|
|
Certificates |
||
|---|---|---|
not available |
 |
 |
 |
 |
 |
|---|---|---|---|---|
| 180 x 80 | 100 | IPDC180X80-10 | 1 | 1250 |
| 180 x 80 | 120 | IPDC180X80-12 | 1 | 1250 |
| 200 x 100 | 140 - 150 | IPDC200X100-14/15 | 1 | 1000 |
| 200 x 100 | 140 - 150 | IPDC200X100-16/18 | 1 | 1000 |
| 200 x 100 | 200 - 220 | IPDC200X100-20/22 | 1 | 1000 |
| 200 x 100 | 250 - 280 | IPDC200X100-25/28 | 1 | 1000 |
| 200 x 100 | 310 - 350 | IPDC200X100-31/35 | 1 | 1000 |
| 300 x 200 | 310 | IPDC300200-31 | 1 | 360 |
| 300 x 200 | 350 | IPDC300200-35 | 1 | 360 |
| 300 x 200 | 400 | IPDC300200-40 | 1 | 360 |
| 400 x 300 | 400 | IPDC300300-40 | 1 | 200 |
