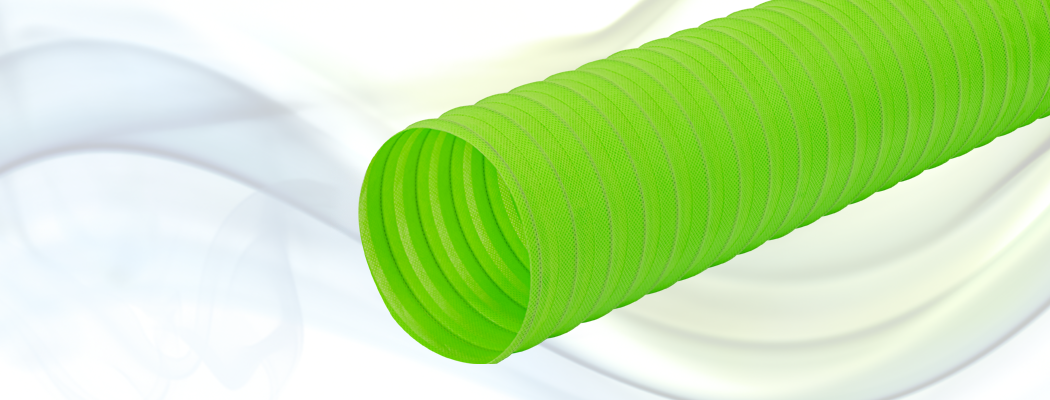

Smartdec
The Smartdec is an unique green flexible duct which contains no PVC! The emission free flexible duct for residential, new build & renovation applications consist out of a durable multiple layer polypropylene fabric wall construction with an interlocked spring-helix for a smoother inside.
The inside of the duct is laminated with an environmental friendly DECPROTECT™ anti-bacterial & anti-fungus inner liner to create an airtight inner surface with excellent properties.
- DECPROTECT™ microbial resistance according to ISO 846 A
- HVAC uses EN13180
- Leakage D/ATC 2 up to +1000Pa
- The polypropylene duct wall offers good resistance to non-oxidizing acids/bases/ fatty agents/most organic solvents
- Highly impermeable to water
application
- Residential ventilation
- Standard ductwork EN 13180
- Air treatment installations
- Distribution, plenum boxes
- Retrofit ventilation channels
unique selling points
- no PVC
- no emissions
- energy saving by less pressure loss
- environmental friendly
- durable
- easy to install
- no emissions
- 100% recyclable
|
Specifications |
|
|---|---|
| temperature range: | -20 °C to +60 °C |
| operating pressure: | max. +1000 Pa |
| operating air velocity: | max. 4 mtr/sec |
| bending radius: | min. 0.54 x ∅ |
| airtightness class: | ATC 2 Class D upto 1000Pa |
| microbial resistance: | ISO 846 A |
| diameter range: | 82 - 315 mm |
| standard length: | 10 mtr |
|
Construction |
|
|---|---|
| number of layers: | 2 |
whereof DECPROTECT™: |
1 |
whereof polypropylene: |
1 |
| available colors: | green |
|
Technical specifications |
|
|---|---|
Dutch specification |
|
German specification |
|
English specification |
|
French specification |
|
Swedish specification |
|
Polish specification |
|
Serbian specification |
Certificates |
||
|---|---|---|
Europe |
EN 13501-1 | D-s1,d0 |
NEN 13180 |
|---|
The Smartdec fulfills all the requirements and are classified as specified within NEN 13180: "Ventilation for buildings – Ductwork - Dimensions and mechanical requirements for flexible ducts". |
 |
 |
 |
 |
|---|---|---|---|
| 82 | SMAD082 | 1 | 98 |
| 102 | SMAD102 | 1 | 98 |
| 127 | SMAD127 | 1 | 98 |
| 160 | SMAD160 | 1 | 72 |
| 203 | SMAD203 | 1 | 50 |
| 254 | SMAD254 | 1 | 32 |
| 315 | SMAD315 | 1 | 21 |
