QIP multiband

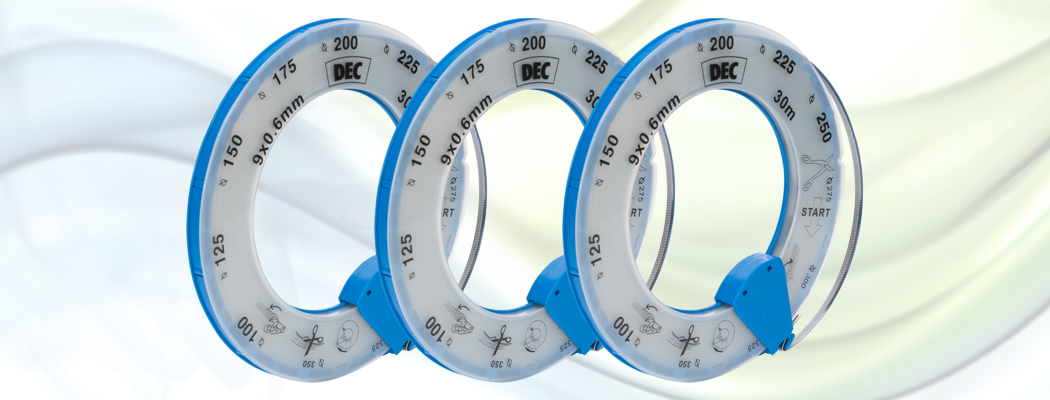

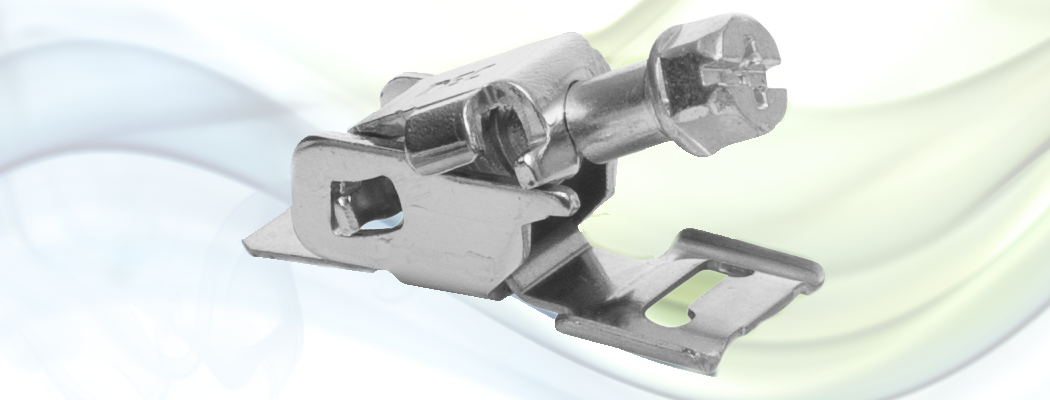

The flexible duct band Multiband with clamps (Multiclamps) are used for the mounting of all types of flexible connections. Through the combination of Multiband and Multiclamps it is possible to create a clamp with the desired diameter at the workplace . The Multiband/Multiclamps are particularly suitable for maintenance purposes.
characteristics
- the band has lifted edges to avoid damage to the ducting
- just cut to adequate length to fit any diameter
|
Specifications |
|
|---|---|
| material band: | stainless steel (UNI x 8 Cr 17-DIN 1.4016(W2) - AISI 430) |
| material clamp: | hardened galvanized steel |
| length band: | 30 mtr |
| width band: | 9 mm |
| thickness band: | 0.6 mm |
|
Technical specifications |
|
|---|---|
Dutch specification |
|
German specification |
|
English specification |
|
Product images
|
|
|---|---|
|
Certificates |
||
|---|---|---|
Germany |
constructed according DIN3017 | |
 |
 |
 |
 |
|
|---|---|---|---|---|
| Multiband | 30 mtr | QIPBAND | 10 | 44 |
 |
|
|
|
|
|---|---|---|---|---|
| Multiclamps | 25 | QIPCLAMP | 20 | 135 |
