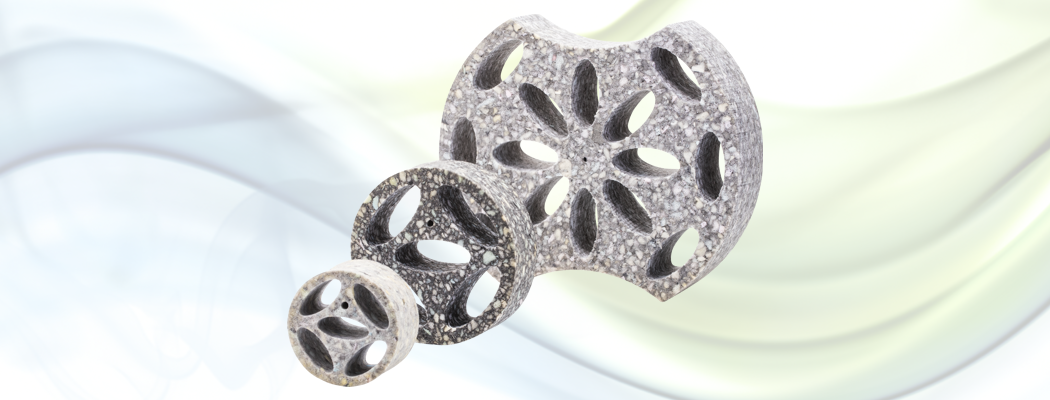

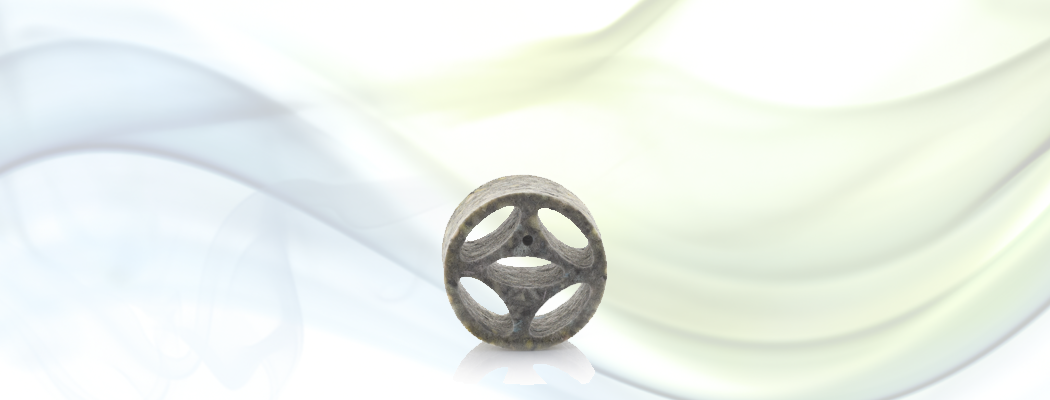

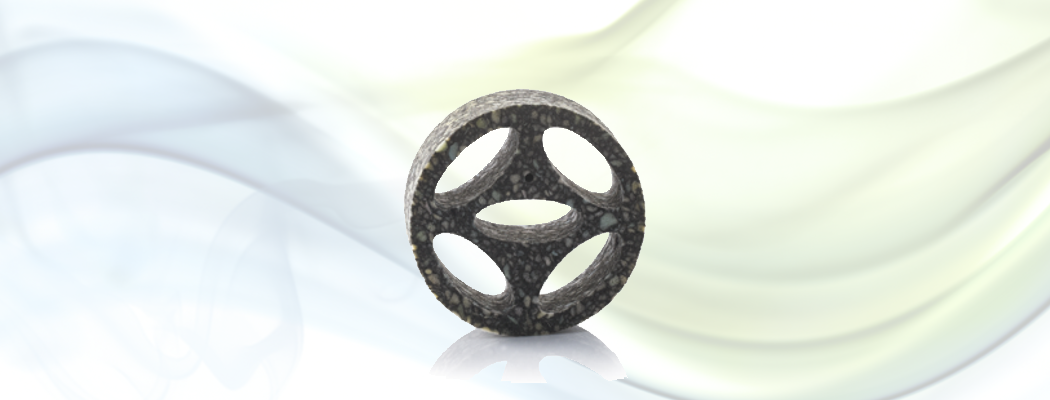

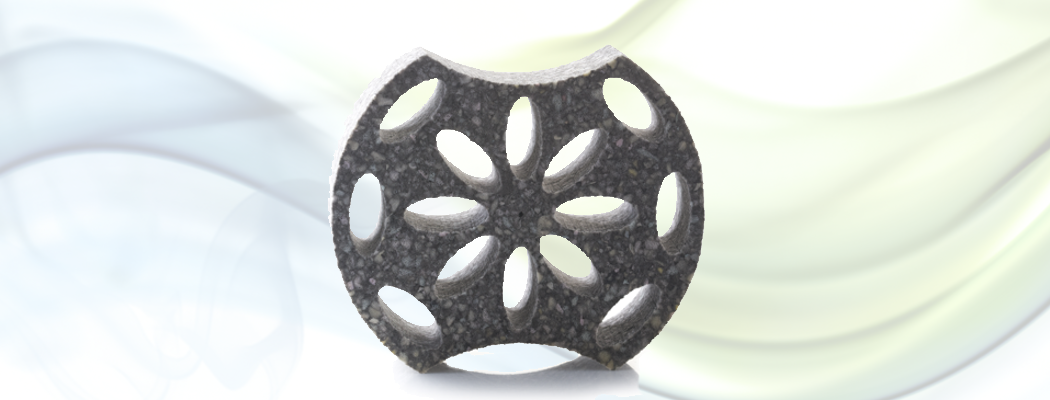

IFD Inline Foam Damper

The IFD Inline Foam Damper is an inline damper for circular ducts. It is completely made from soft elastic plastic foam with good damping abilities. The damper has a number of oval openings equipped with releasable plugs. The pressure drop across the damper is adjusted by varying the number of open holes.

Due to the special material and the design of the holes, sound generation will be low even at large pressure drops. The damper is equipped with a measurement outlet to make adjustment faster. The stable plastic foam has an open cellural structure and high density, which makes for an extraordinary ability to absorb sound. Because of this, the damper acts as a simple silencer.

By placing several dampers after one another in a duct, the silencing is increased further. Sound problems, such as overhearing between rooms, can often be solved.

application

  • insertion loss damper
  • air supply systems
  • air conditioning systems
  • sound attenuator
Specifications
temperature range: -40 °C to 120 °C
operating pressure: max. +370 Pa
bending radius: n.a.
diameter range: 80 - 315 mm
Construction
foam damper: polyurethane
protective foil: polyurethane film
appearance: black/grey
Technical specifications
Dutch specification
German specification
English specification
Product images
Certificates
Europe
EN 11925-2:2002 flame retardant
80 DIN080RP 1 10240
100 DIN100RP 1 5600
125 DIN125RP 1 3520
160 DIN160RP 1 2080
200 DIN200RP 1 1280
250 DIN250RP 1 736
315 DIN315RP 1 480
