Connectdec type Akudec

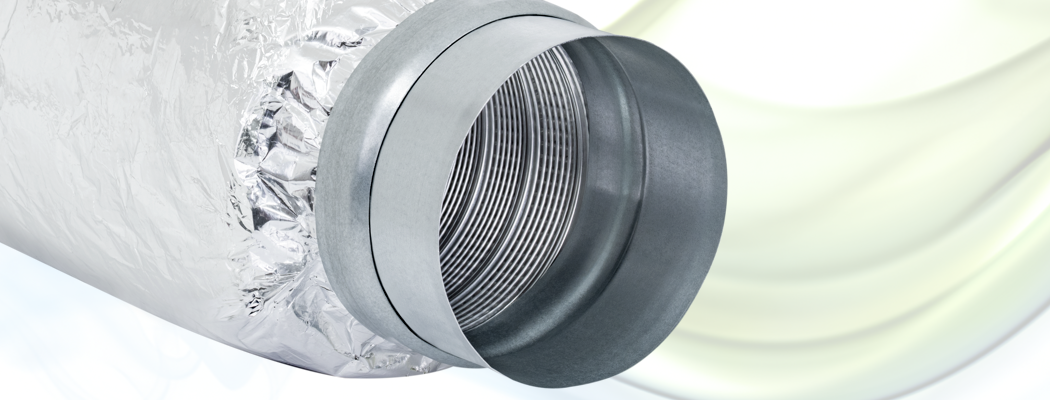

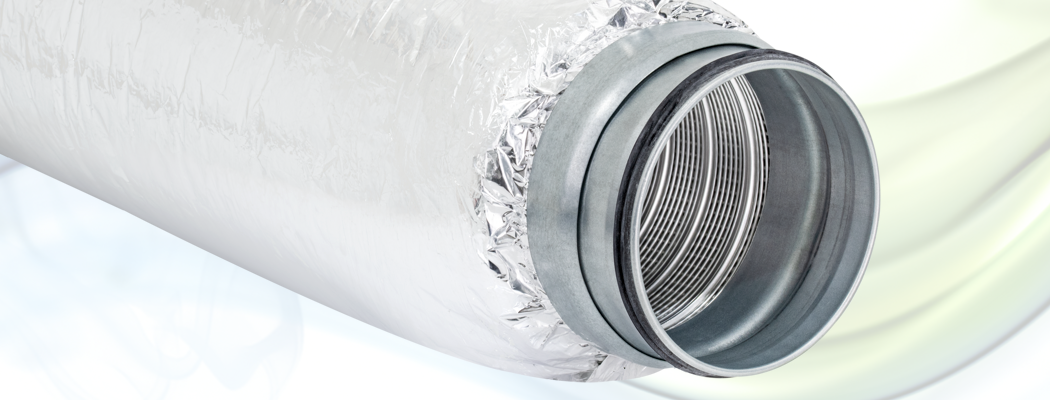

The Connectdec type Akudec is a strong, flexible and corrugated aluminium inner duct with a aluminium laminate outer jacket. The space between the inner and outer ducts is filled with 25 mm sound absorbing material. A non-woven barrier between the inner duct and the glass wool prevents the diffusion of glass wool particles.

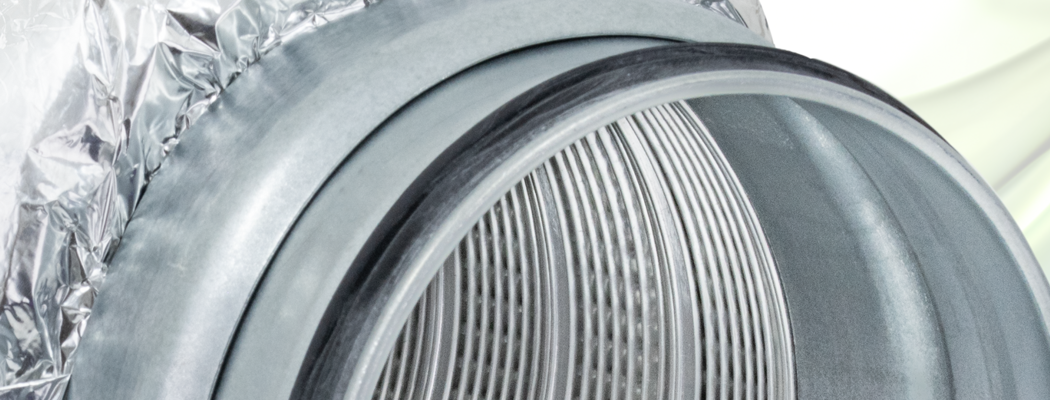

The attenuator is by standard on both sides equipped with galvanized metal sleeves for direct mounting to the rigid duct work or equipment.

You can choose between the following connections (connections according EN1506):

  • 2x male (type 1)
  • male - female (type 2)
  • 2x female (type 3)

application

  • can be combined immediately with our air valves (e.g. DAV or DVSC)
  • air supply systems
  • air conditioning systems
  • sound attenuator
  • the reduction of noise from machines
  • handy connector between ventilation units and air duct systems
Specifications
temperature range:
inner duct:
-30 °C to 250 °C
outer jacket:
-30 °C to 140 °C
operating pressure: max. +3000 Pa
operating air velocity: max. 30 m/s
bending radius: min. 2.0 x ∅
diameter range: 80 - 315 mm
standard length: 0.5 and 1.0 mtr
Construction
inner duct: perforated aluminium
barrier: non-woven fabric
glass wool blanket: 25 mm, 16 kg/m³
r-value:
0.65m² K/W (ASTM C177-76)
outer jacket: aluminium/polyester laminate
sleeves: galvanized steel
appearance: aluminium
Technical specifications
Dutch specification
German specification
English specification
French specification
Graphs

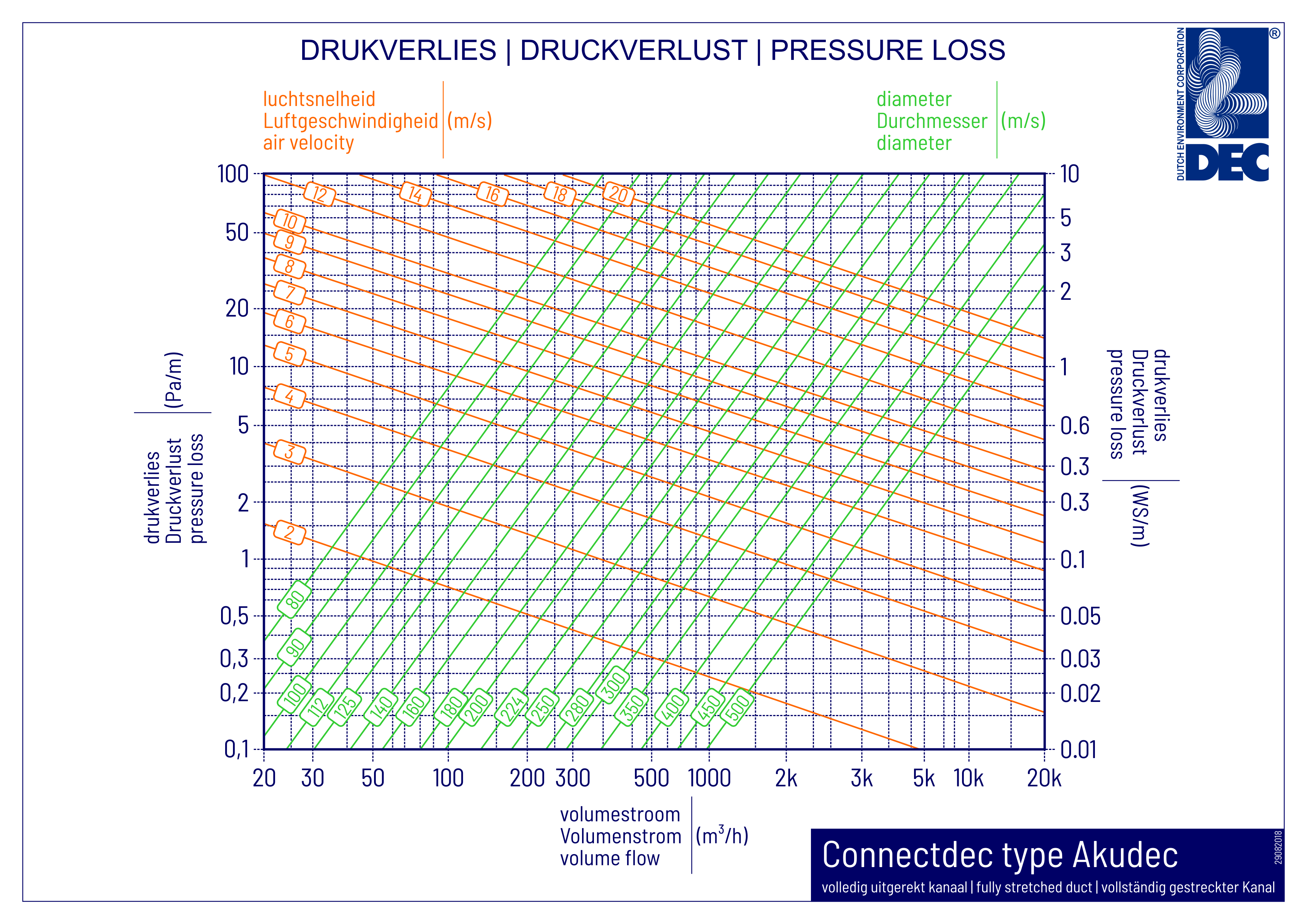

pressure loss (download as .PDF or as .PNG)

Product images
Certificates
Europe
EN 13501-1 A1 (inner duct)
Europe
EN 13501-1 B-s1,d0 (outer jacket)
NEN 13180

The Connectdec type Akudec fulfills all the requirements and are classified as specified within NEN 13180: "Ventilation for buildings – Ductwork - Dimensions and mechanical requirements for flexible ducts".

      0.5 mtr 1.0 mtr
80 AKUTM080/L 1 126 72
100 AKUTM100/L 1 96 56
125 AKUTM125/L 1 70 40
150 AKUTM150/L 1 48 26
160 AKUTM160/L 1 48 24
200 AKUTM200/L 1 30 18
250 AKUTM250/L 1 22 12
315 AKUTM315/L 1 12 8

T (type): 1 = type 1 (♂♂), 2 = type 2 (♂♀) and 3 = type 3 (♀♀)

L (length): 0.5 = 0.5 meter and 1.0 = 1.0 meter
