Compacdec

The Compacdec is a semi-flexible duct, constructed from two layers of corrugated aluminium. The special seamed joint creates a very high air tightness and flexibility.

environment

  • sustainable
  • 100% recyclable

application

  • suitable for mechanical air supply systems and air conditioning systems
  • in systems where fumes are extracted
  • above mentioned systems, where a special mechanical strength is required
Specifications
temperature range: -30 °C to 250 °C
peak load:
400 °C
operating pressure: max. +3000 Pa
operating air velocity: max. 30 m/s
bending radius: min. 1.0 x ∅
diameter range: 50 - 500 mm
standard length: 5 mtr
Construction
number of layers: 2
whereof aluminium:
2
appearance: aluminium
Technical specifications
Dutch specification
German specification
English specification
Graphs

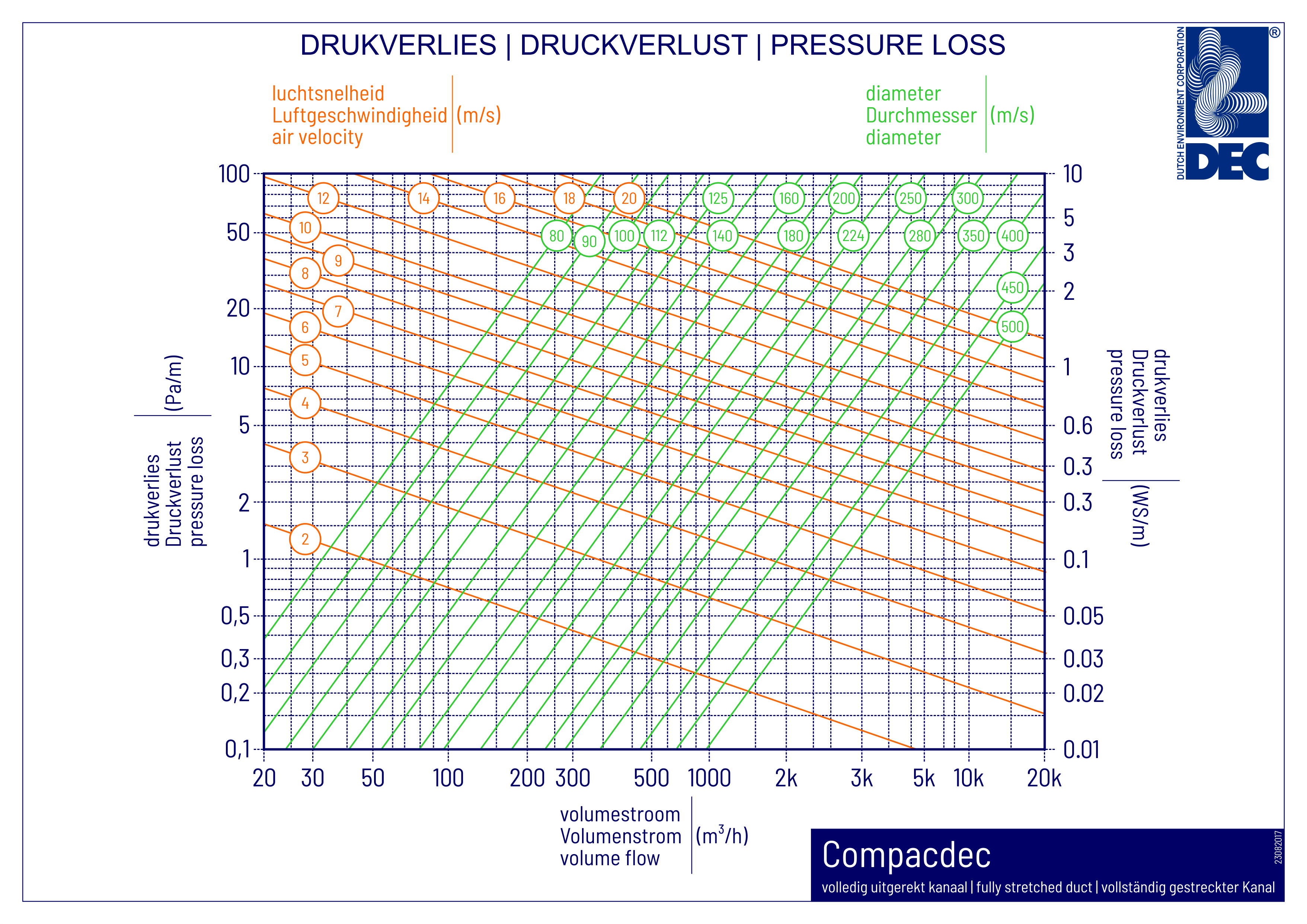

pressure loss (download as .PDF or as .PNG)

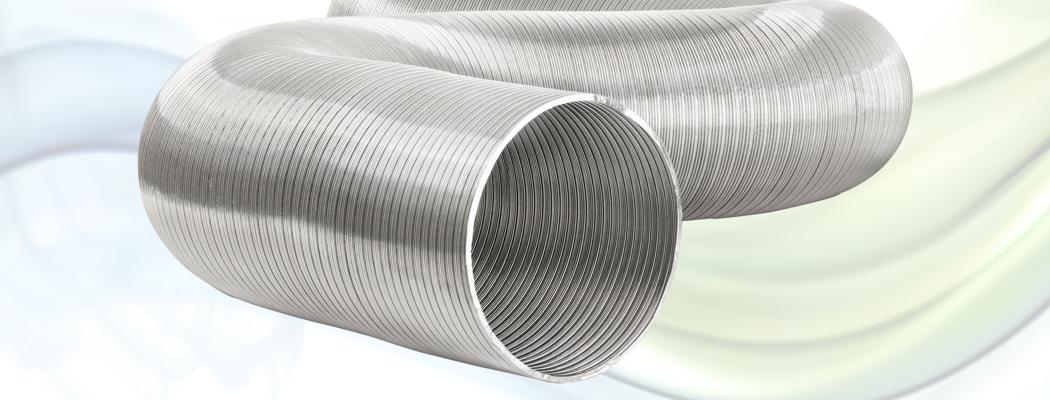

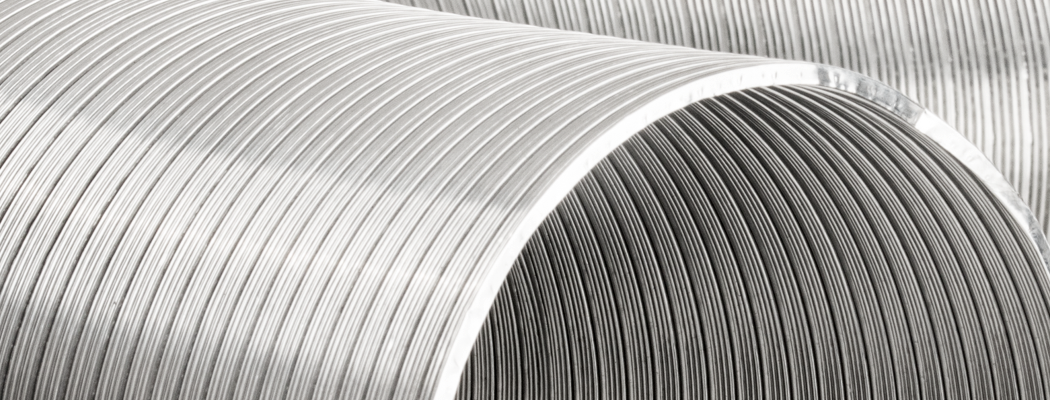

Product images
Certificates
Europe
EN 13501-1 A1
United Kingdom
BS476 Part 4, 6, 7 and 20
France
NF M0
Germany
DIN4102 A1
NEN 13180

The Compacdec fulfills all the requirements and are classified as specified within NEN 13180: "Ventilation for buildings – Ductwork - Dimensions and mechanical requirements for flexible ducts".

50 DCD2050 1 160
63 DCD2063 1 160
71 DCD2071 1 160
75 DCD2075 1 160
80 DCD2080 1 160
100 DCD2100 1 119
125 DCD2125 1 84
140 DCD2140 1 60
150 DCD2150 1 60
160 DCD2160 1 60
180 DCD2180 1 40
200 DCD2200 1 40
224 DCD2224 1 24
250 DCD2250 1 24
280 DCD2280 1 14
300 DCD2300 1 14
315 DCD2315 1 14
355 DCD2355 1 12
400 DCD2400 1 10
450 DCD2450 1 4
500 DCD2500 1 2
