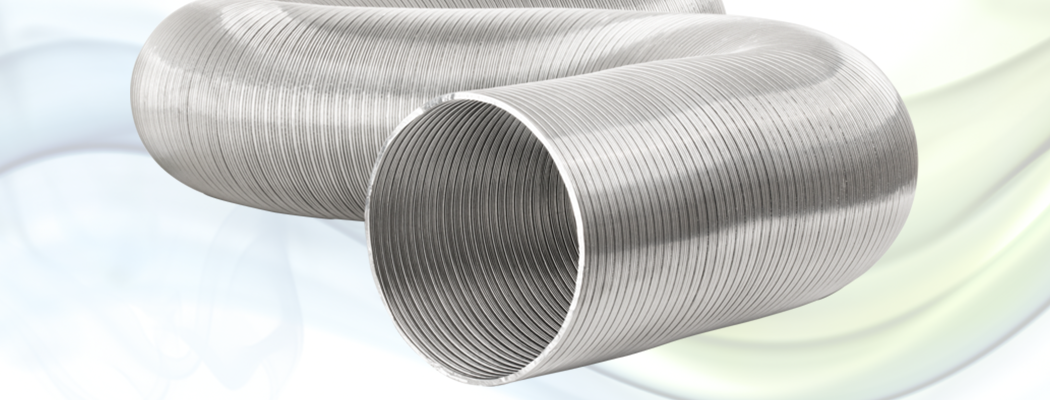

Stretchdec Premium
The Stretchdec Premium is an excellent flexible duct, constructed from one layer of corrugated aluminium. The special seamed joint creates a very high air tightness and flexibility.
environment
- sustainable
- 100% recyclable
application
- suitable for mechanical air supply systems and air conditioning systems
- in systems where fumes are extracted
- above mentioned systems, where a special mechanical strength is required
|
Specifications |
|
|---|---|
| temperature range: | -30 °C to 250 °C |
peak load: |
400 °C |
| operating pressure: | max. +3000 Pa |
| operating air velocity: | max. 30 m/s |
| bending radius: | min. 1.0 x ∅ |
| diameter range: | 80 - 315 mm |
| standard length: | 3 mtr |
|
Construction |
|
|---|---|
| number of layers: | 1 |
whereof aluminium: |
1 |
| appearance: | aluminium |
|
Technical specifications |
|
|---|---|
Dutch specification |
|
German specification |
|
English specification |
|
Graphs
|
|
|---|---|
|
pressure loss (download as .PDF or as .PNG) |
|

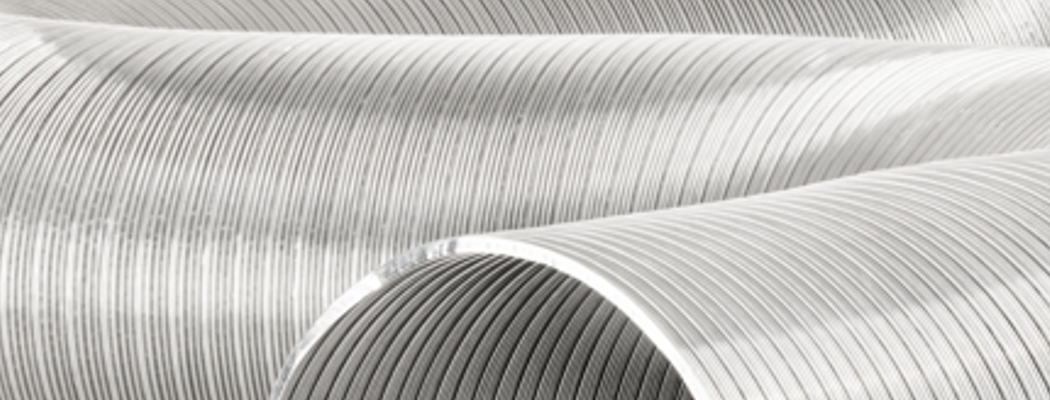

Product images
|
|
|---|---|
|
Certificates |
||
|---|---|---|
Europe |
EN 13501-1 | A1 |
United Kingdom |
BS476 | Part 4, 6, 7 and 20 |
France |
NF | M0 |
Germany |
DIN4102 | A1 |
NEN 13180 |
|---|
The Stretchdec Premium fulfills all the requirements and are classified as specified within NEN 13180: "Ventilation for buildings – Ductwork - Dimensions and mechanical requirements for flexible ducts". |
single packaging
 |
 |
 |
 |
|---|---|---|---|
| 80 | DXGP082 | 1 | 240 |
| 82 | DXGP082 | 1 | 240 |
| 100 | DXGP100 | 1 | 170 |
| 102 | DXGP102 | 1 | 170 |
| 125 | DXGP125 | 1 | 112 |
| 127 | DXGP127 | 1 | 112 |
| 133 | DXGP133 | 1 | 112 |
| 140 | DXGP140 | 1 | 84 |
| 150 | DXGP150 | 1 | 84 |
| 152 | DXGP152 | 1 | 84 |
| 160 | DXGP160 | 1 | 84 |
| 180 | DXGP180 | 1 | 50 |
| 200 | DXGP200 | 1 | 50 |
| 203 | DXGP203 | 1 | 50 |
| 224 | DXGP224 | 1 | 28 |
| 250 | DXGP250 | 1 | 28 |
| 254 | DXGP254 | 1 | 28 |
| 280 | DXGP280 | 1 | 18 |
| 300 | DXGP300 | 1 | 18 |
| 315 | DXGP315 | 1 | 18 |
| 355 | DXGP355 | 1 | 15 |
| 400 | DXGP400 | 1 | 10 |
| 450 | DXGP450 | 1 | 4 |
| 500 | DXGP500 | 1 | 4 |
bulk packaging
|
|
|
|
|---|---|---|---|
| 80 | DXGPM082 | 125 | 2 |
| 82 | DXGPM082 | 125 | 2 |
| 100 | DXGPM100 | 80 | 2 |
| 102 | DXGPM102 | 80 | 2 |
| 125 | DXGPM125 | 48 | 2 |
| 127 | DXGPM127 | 48 | 2 |
| 133 | DXGPM133 | 46 | 2 |
| 140 | DXGPM140 | 34 | 2 |
| 150 | DXGPM150 | 34 | 2 |
| 152 | DXGPM152 | 34 | 2 |
| 160 | DXGPM160 | 32 | 2 |
| 180 | DXGPM180 | 24 | 2 |
| 200 | DXGPM200 | 20 | 2 |
| 203 | DXGPM203 | 20 | 2 |
| 224 | DXGPM224 | 15 | 2 |
| 250 | DXGPM250 | 12 | 2 |
| 254 | DXGPM254 | 12 | 2 |
| 280 | DXGPM280 | 11 | 2 |
| 300 | DXGPM300 | 8 | 2 |
| 315 | DXGPM315 | 7 | 2 |
| 355 | DXGPM355 | 6 | 2 |
| 400 | DXGPM400 | 4 | 2 |
| 450 | DXGPM450 | 2 | 2 |
| 500 | DXGPM500 | 2 | 2 |
