Sonodec Non-woven

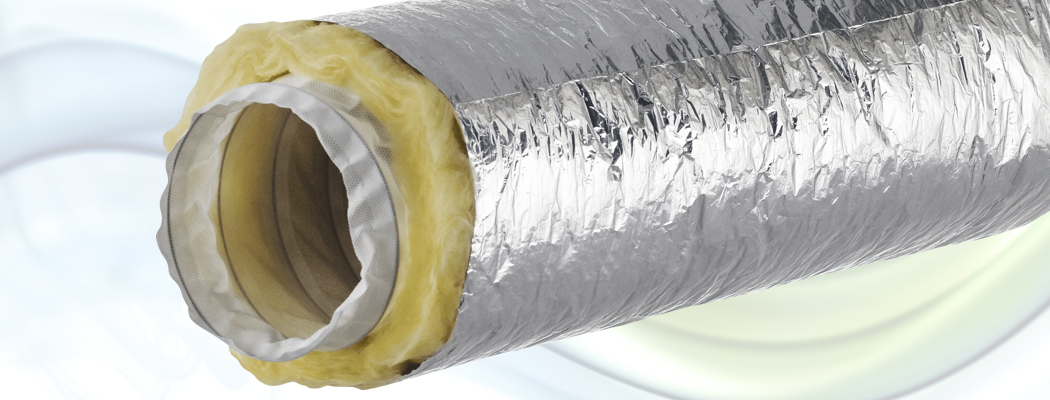

The Sonodec Non-woven consists of a polypropylene fabric cloth inner duct, thermically and acoustically insulated with a glass wool layer and provided with an aluminium laminated outer jacket. The inner duct is hydrophobic.
application
- air supply systems
- air conditioning systems
- preventing condensation in air conditioning systems
- reduction of engine noise
|
Specifications |
|
|---|---|
| temperature range: | -30 °C to 140 °C |
| operating pressure: | max. +2500 Pa |
| operating air velocity: | max. 25 m/s |
| bending radius: | min. 0.54 x ∅ + 25 mm |
| diameter range: | 82 - 406 mm |
| standard length: | 10 mtr |
|

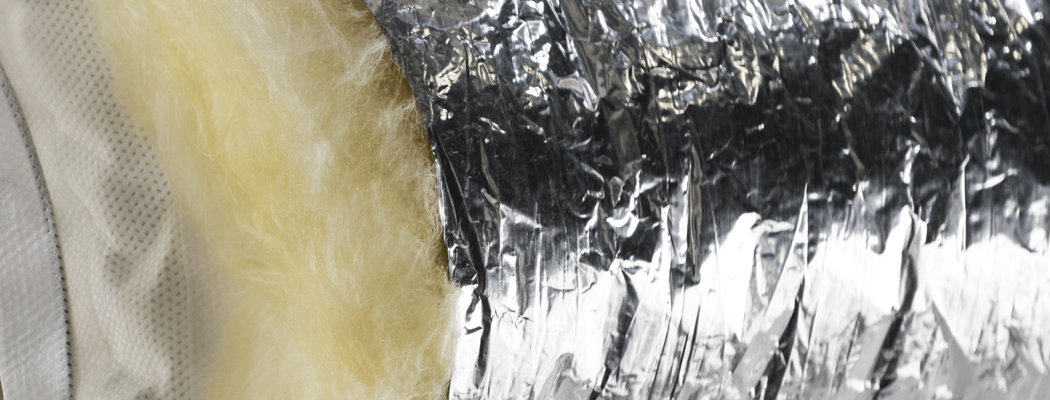

Construction |
|
|---|---|
| inner duct: | non-woven polypropylene fabric cloth |
| glass wool blanket: | 25 mm, 16 kg/m³ |
r-value: |
0.65m² K/W (ASTM C177-76) |
| outer jacket: | aluminium/polyester laminate |
| appearance: | aluminium |
|
Technical specifications |
|
|---|---|
Dutch specification |
|
German specification |
|
English specification |
|
Graphs
|
|
|---|---|
|

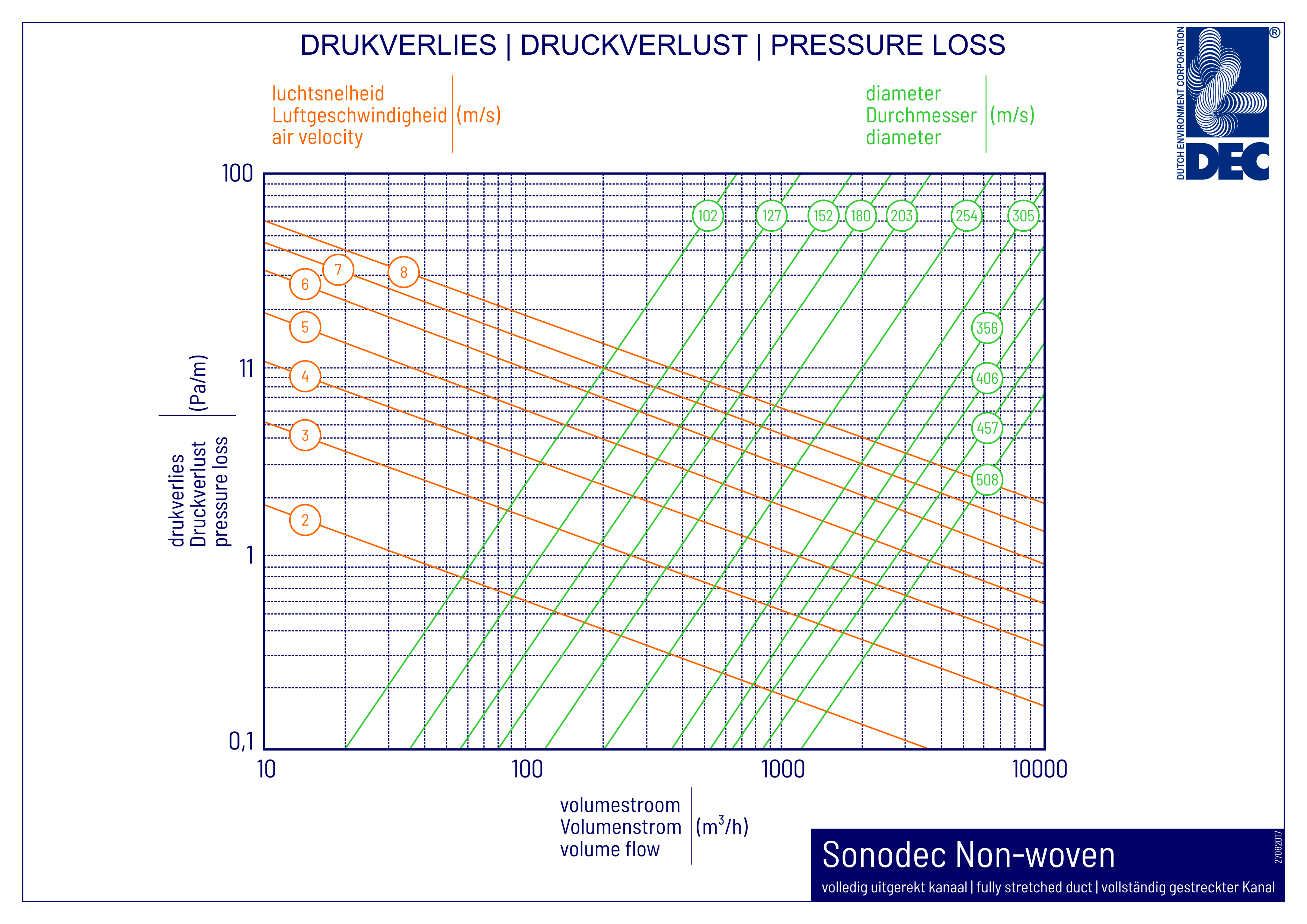

pressure loss (download as .PDF or as .PNG) |
|
Product images
|
|
|---|---|
NEN 13180 |
|---|
The Sonodec Non-woven fulfills all the requirements and are classified as specified within NEN 13180: "Ventilation for buildings – Ductwork - Dimensions and mechanical requirements for flexible ducts". |
 |
 |
 |
 |
|---|---|---|---|
| 82 | SBI082 | 1 | 98 |
| 102 | SBI102 | 1 | 72 |
| 127 | SBI127 | 1 | 66 |
| 152 | SBI152 | 1 | 50 |
| 160 | SBI160 | 1 | 45 |
| 180 | SBI180 | 1 | 32 |
| 203 | SBI203 | 1 | 32 |
| 229 | SBI229 | 1 | 24 |
| 254 | SBI254 | 1 | 21 |
| 305 | SBI305 | 1 | 15 |
| 315 | SBI315 | 1 | 15 |
| 356 | SBI356 | 1 | 8 |
| 406 | SBI406 | 1 | 8 |
