Sonodec CE

The Sonodec CE consists of a perforated aluminum/polyester laminate inner duct thermally and acoustically insulated with glass wool and is provided with an aluminium laminated outer jacket.

application

  • air supply systems
  • air conditioning systems
  • preventing condensation in air conditioning systems
  • reduction of engine noise
Specifications
temperature range:
inner duct:
-30 °C to 250 °C
outer jacket:
-30 °C to 140 °C
operating pressure: max. +3000 Pa
operating air velocity: max. 30 m/s
bending radius: min. 0.54 x ∅ + 25 mm
diameter range: 82 - 406 mm
standard length: 10 mtr
Construction
inner duct: aluminium/polyester laminate
glass wool blanket: 25 mm, 16 kg/m³
r-value:
0.65m² K/W (ASTM C177-76)
outer jacket: aluminium/polyester laminate
appearance: aluminium
Technical specifications
Dutch specification
German specification
English specification
French specification
Graphs

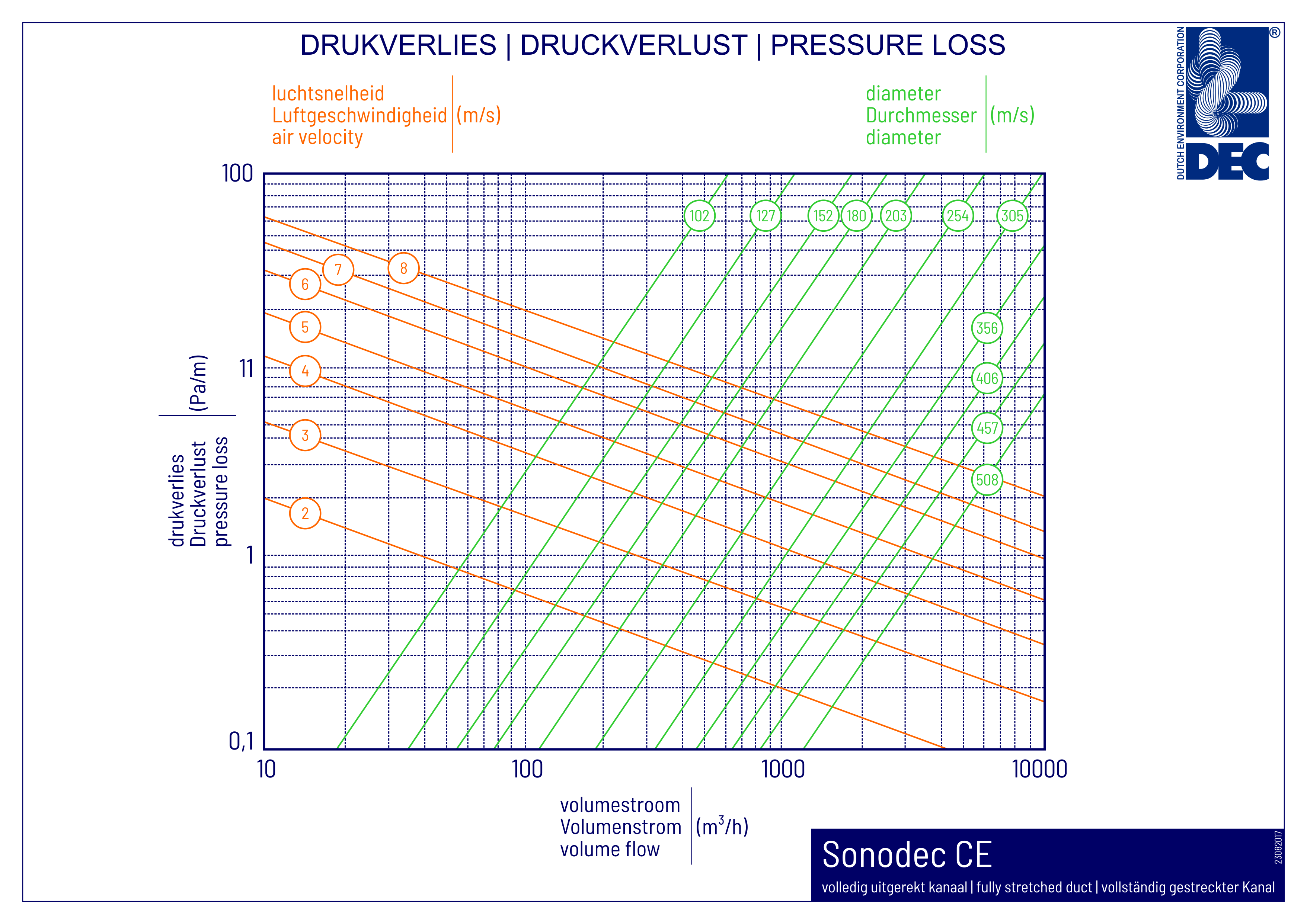

pressure loss (download as .PDF or as .PNG)

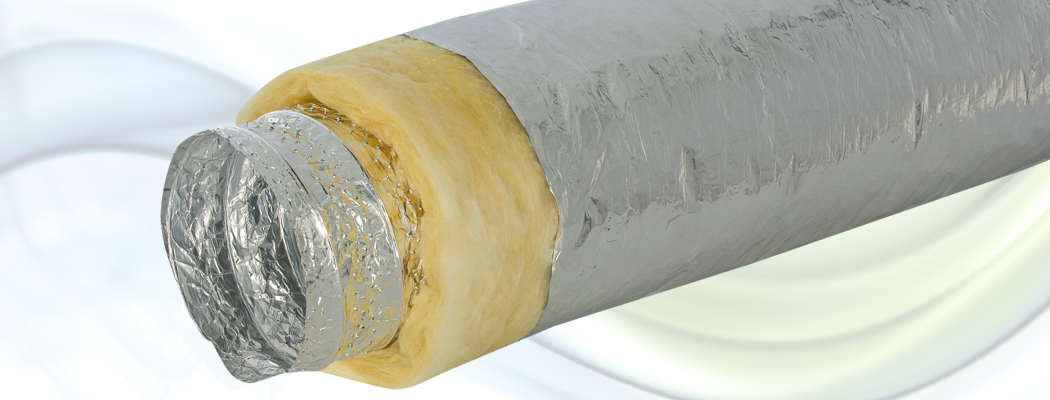

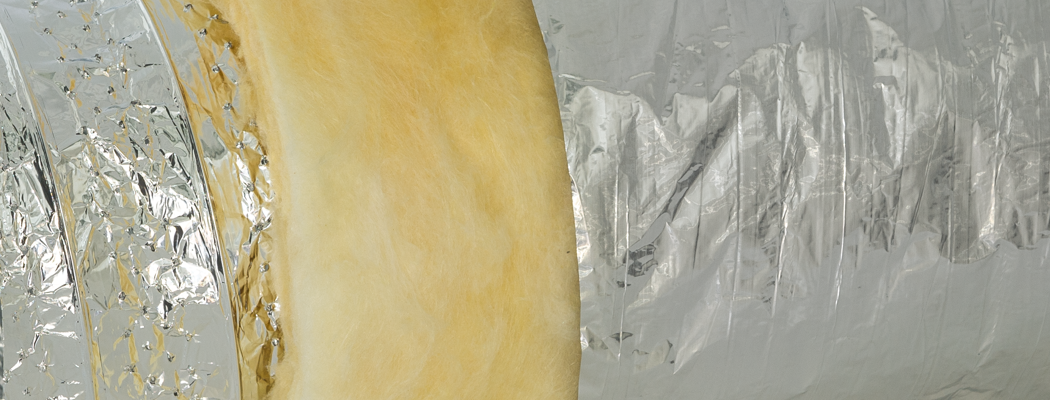

Product images
Certificates
Europe
EN 13501-1 B-s1,d0
France
NF M1
NEN 13180

The Sonodec CE fulfills all the requirements and are classified as specified within NEN 13180: "Ventilation for buildings – Ductwork - Dimensions and mechanical requirements for flexible ducts".

82 DSXCE082 1 98
102 DSXCE102 1 72
127 DSXCE127 1 66
152 DSXCE152 1 50
160 DSXCE160 1 45
180 DSXCE180 1 32
203 DSXCE203 1 32
229 DSXCE229 1 24
254 DSXCE254 1 21
305 DSXCE305 1 15
315 DSXCE315 1 15
356 DSXCE356 1 8
406 DSXCE406 1 8
