Sonodec 25 TRD

The Sonodec 25 TRD consists of a perforated aluminum/polyester laminate inner duct, thermally and acoustically insulated with a glass wool layer and provided with an aluminum/polyester laminate outer jacket. A plastic barrier between the inner duct and the glass wool prevents particle migration into the air stream. Both ends are taped to create ready-made connections.

The Sonodec 25 TRD has an increased insertion loss while the Sonodec 25 GLX has an increased sound attenuation.

application

  • air supply systems
  • air conditioning systems
  • sound attenuator
  • the reduction of noise from machines
Specifications
temperature range: -30 °C to 140 °C
operating pressure: max. +2500 Pa
operating air velocity: max. 25 m/s
bending radius: min. 0.54 x ∅
diameter range: 82 - 508 mm
standard length: 0.5, 1.0, 1.5 and 2.0 mtr
Construction
inner duct: aluminium/polyester laminate
barrier: plastic film
glass wool blanket: 25 mm, 16 kg/m³
r-value:
0.65m² K/W (ASTM C177-76)
outer jacket: aluminium/polyester laminate
appearance: aluminium
Technical specifications
Dutch specification
German specification
English specification
Grafieken

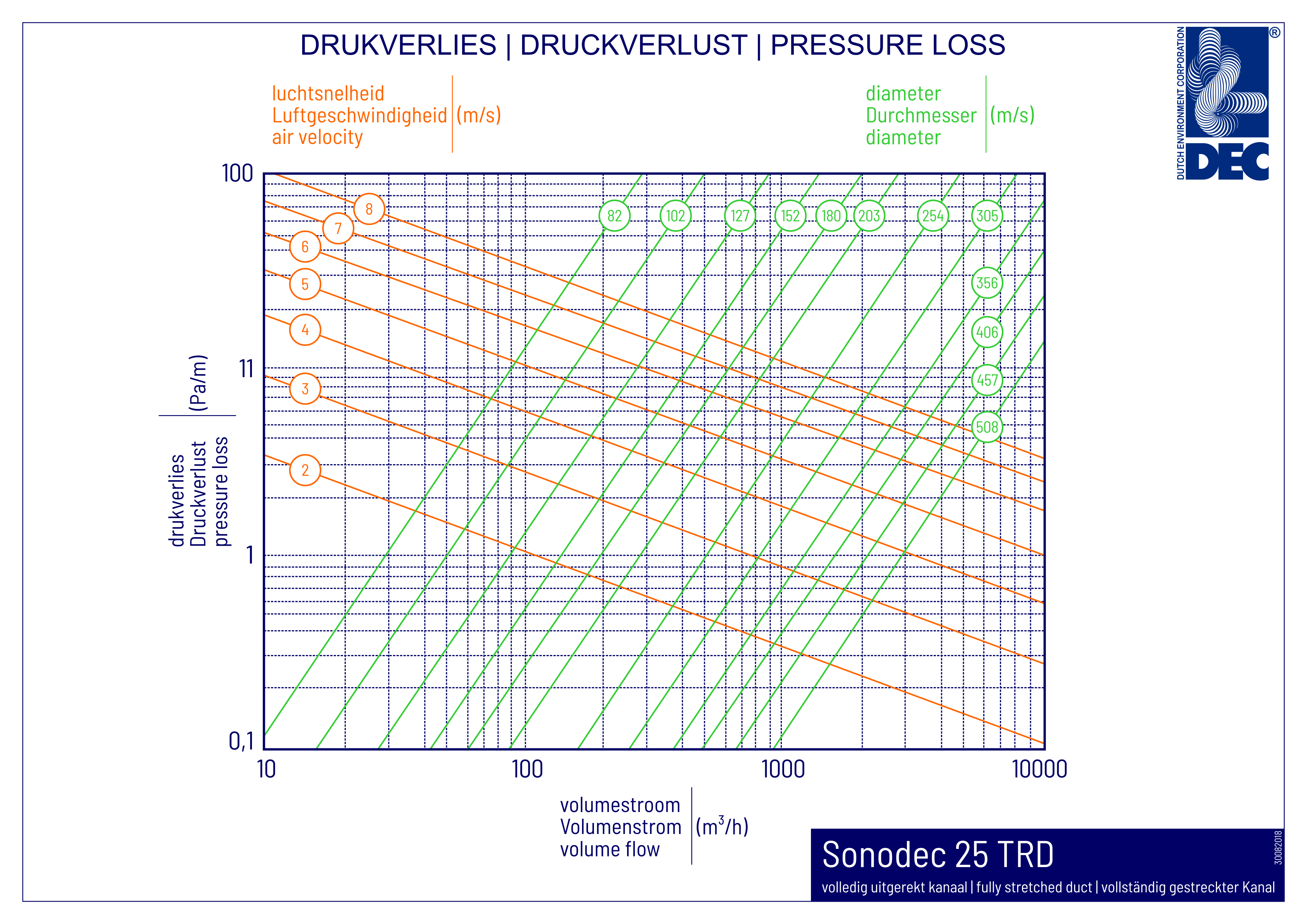

drukverlies (download als .PDF of als .PNG)

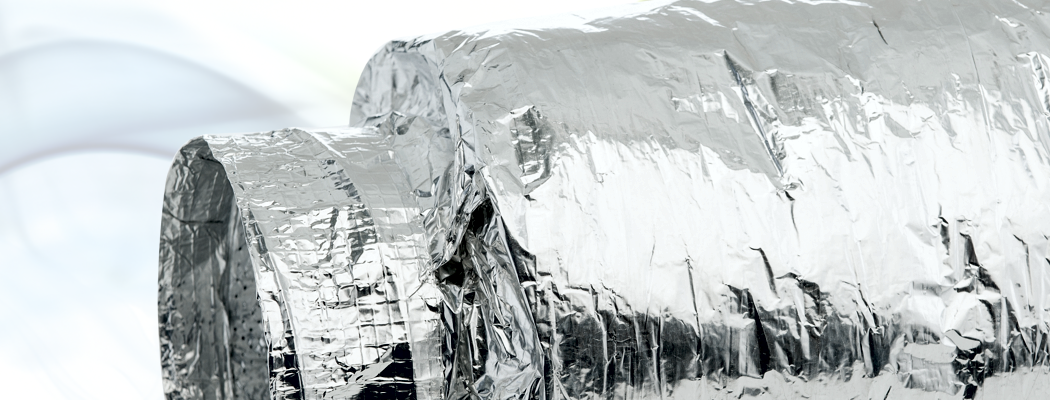

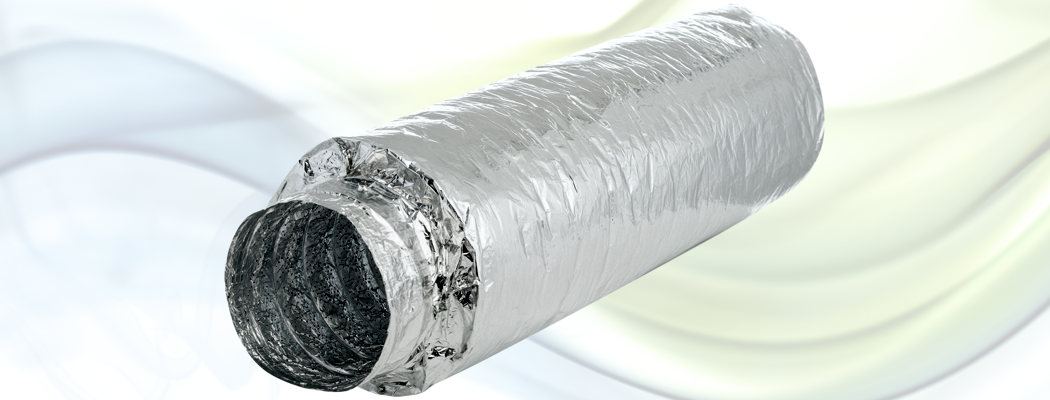

Product images
Certificates
Netherlands
NEN 6065/6066 Class 1
United Kingdom
BS476 Part 6, 7 and 20
France
NF M1
NEN 13180

The Sonodec 25 TRD fulfills all the requirements and are classified as specified within NEN 13180: "Ventilation for buildings – Ductwork - Dimensions and mechanical requirements for flexible ducts".

82 DST082/L 1 224
102 DST102/L 1 168
127 DST127/L 1 120
152 DST152/L 1 90
160 DST160/L 1 72
180 DST180/L 1 72
203 DST203/L 1 56
229 DST229/L 1 36
254 DST254/L 1 36
305 DST305/L 1 30
315 DST315/L 1 30
356 DST356/L 1 20
406 DST406/L 1 16
457 DST457/L 1 8
508 DST508/L 1 8

L (length): 0.5 = 0.5 meter, 1.0 = 1.0 meter, 1.5 = 1.5 meter and 2.0 = 2.0 meter
