Sonodec 25 TRD Non-woven

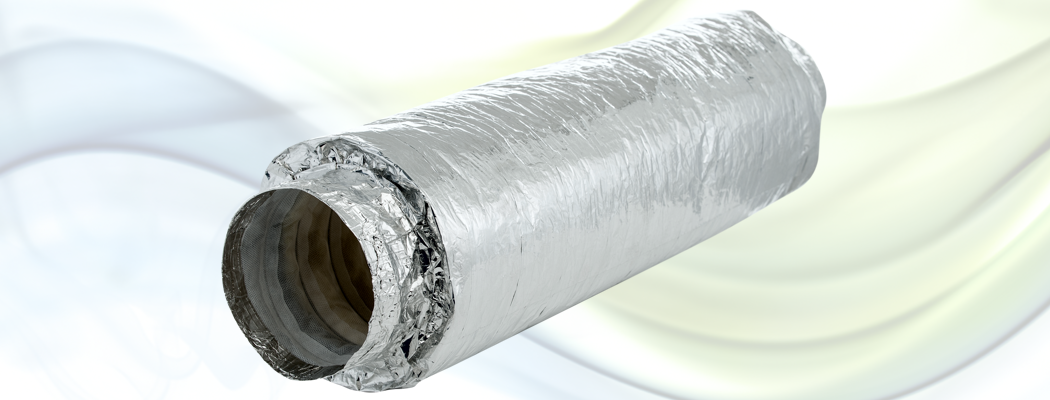

The Sonodec 25 TRD Non-woven consists of a polypropylene inner duct, thermally and acoustically insulated with a glass wool layer and provided with an aluminum laminate outer jacket. Both ends are taped to create ready-made connections.
application
- air supply systems
- air conditioning systems
- sound attenuator
- the reduction of noise from machines
|
Specifications |
|
|---|---|
| temperature range: | -30 °C to 140 °C |
| operating pressure: | max. +2500 Pa |
| operating air velocity: | max. 25 m/s |
| bending radius: | min. 0.54 x ∅ |
| diameter range: | 102 - 254 mm |
| standard length: | 0.5 and 1.0 mtr |
|
Construction |
|
|---|---|
| inner duct: | non-woven polypropylene cloth |
| glass wool blanket: | 25 mm, 16 kg/m³ |
r-value: |
0.65m² K/W (ASTM C177-76) |
| outer jacket: | aluminium/polyester laminate |
| appearance: | aluminium |
|
Technical specifications |
|
|---|---|
Dutch specification |
|
German specification |
|
English specification |
|
Grafieken
|
|
|---|---|
|

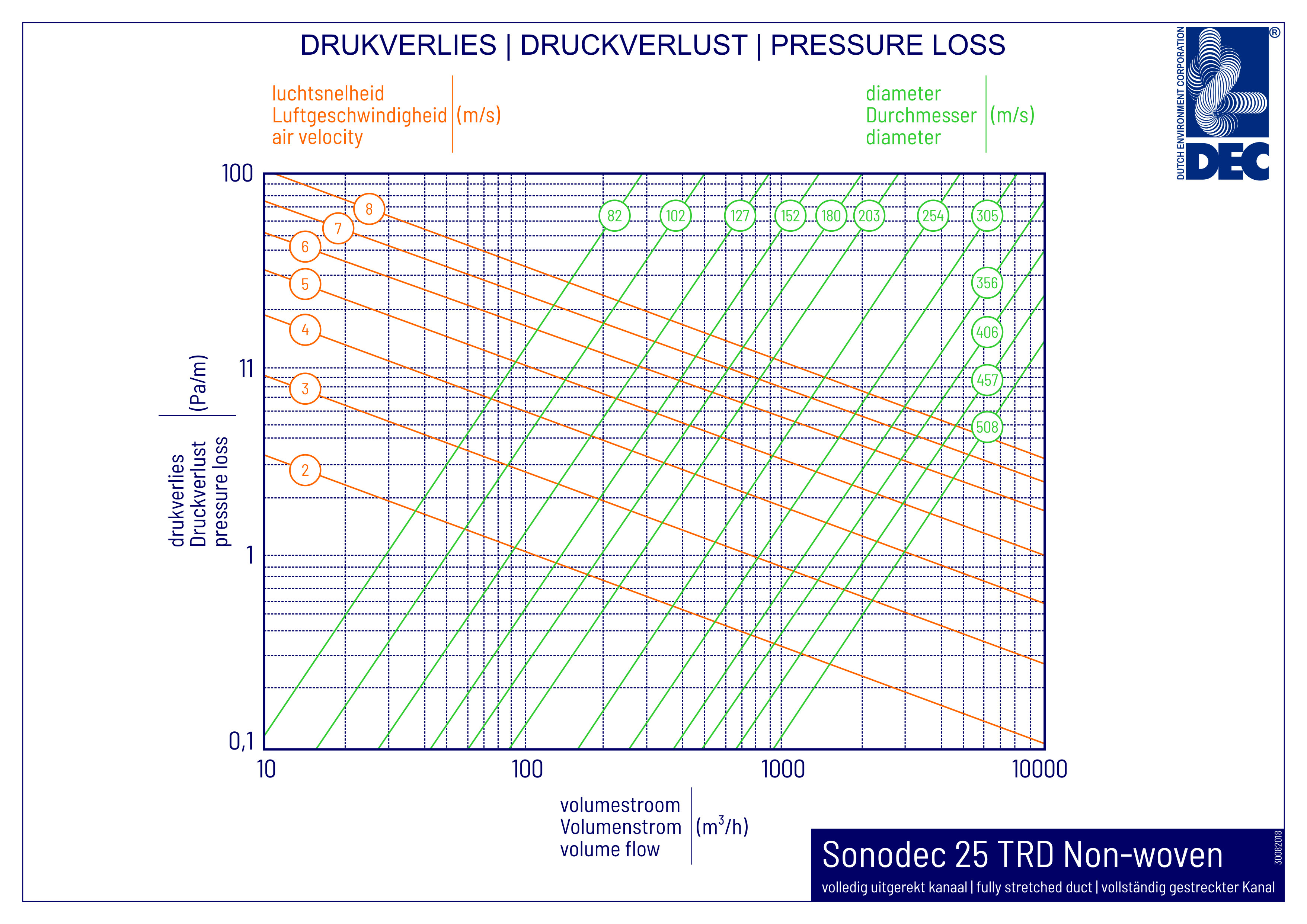

drukverlies (download als .PDF of als .PNG) |
|

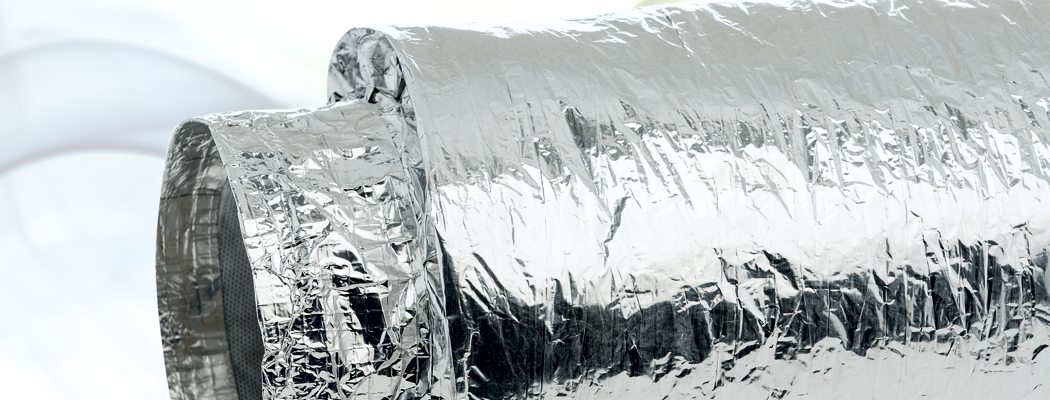

Product images
|
|
|---|---|
NEN 13180 |
|---|
The Sonodec 25 TRD Non-woven fulfills all the requirements and are classified as specified within NEN 13180: "Ventilation for buildings – Ductwork - Dimensions and mechanical requirements for flexible ducts". |
 |
 |
 |
 |
|
|---|---|---|---|---|
| 0.5 mtr | 1.0 mtr | |||
| 102 | SBITM102/L | 1 | 125 | 100 |
| 127 | SBITM127/L | 1 | 100 | 80 |
| 152 | SBITM152/L | 1 | 80 | 64 |
| 160 | SSBITM60/L | 1 | 80 | 64 |
| 180 | SBITM180/L | 1 | 45 | 36 |
| 203 | SBITM203/L | 1 | 45 | 36 |
| 254 | SBITM254/L | 1 | 30 | 25 |
L (length): 0.5 = 0.5 meter and 1.0 = 1.0 meter
