Isodec 250 + Combi 2100
The Isodec 250 + Combi 2100 consists of an aluminium laminate inner duct, thermally insulated with a glass wool layer and provided with an aluminium/copolymer laminated outer jacket.
application
- insulation in air supply systems
- air conditioning systems
- thermal insulation in order to prevent heat or cold loss
- prevention / removal of condensation
|
Specifications |
|
|---|---|
| temperature range: | |
inner duct: |
-30 °C to 250 °C |
outer jacket: |
-30 °C to 140 °C |
| operating pressure: | max. +3000 Pa |
| operating air velocity: | max. 30 m/s |
| bending radius: | min. 0.58 x ∅ + 25 mm |
| diameter range: | 82 - 508 mm |
| standard length: | 6 mtr |
|
Construction |
|
|---|---|
| inner duct: | aluminium/polyester laminate |
| glass wool blanket: | 25 mm, 16 kg/m³ |
r-value: |
0.65m² K/W (ASTM C177-76) |
| outer jacket: | aluminium/polyester/copolymer laminate |
| appearance: | grey, black and white |
|
Technical specifications |
|
|---|---|
Dutch specification |
|
German specification |
|
English specification |
|
Graphs
|
|
|---|---|
|

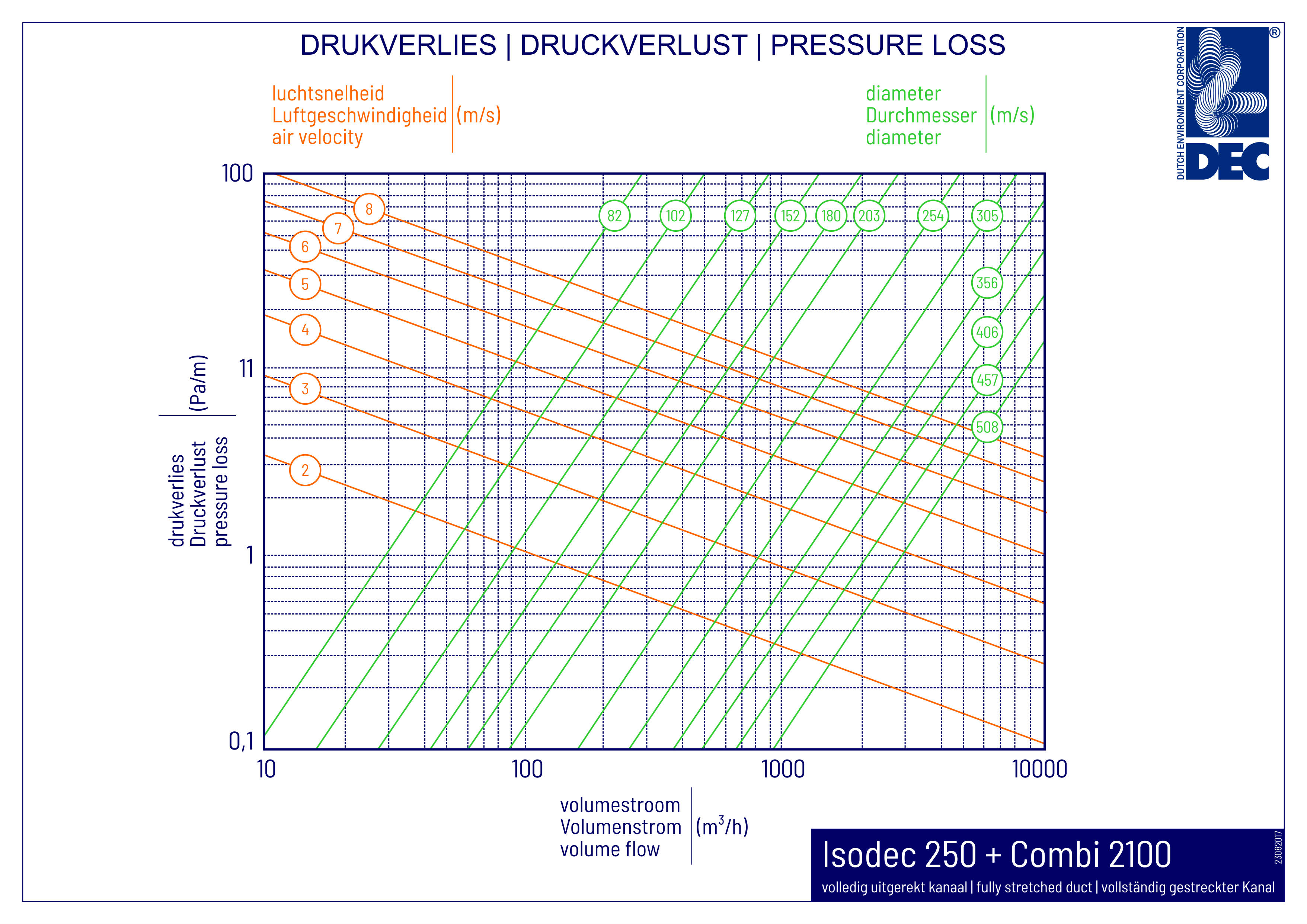

pressure loss (download as .PDF or as .PNG) |
|

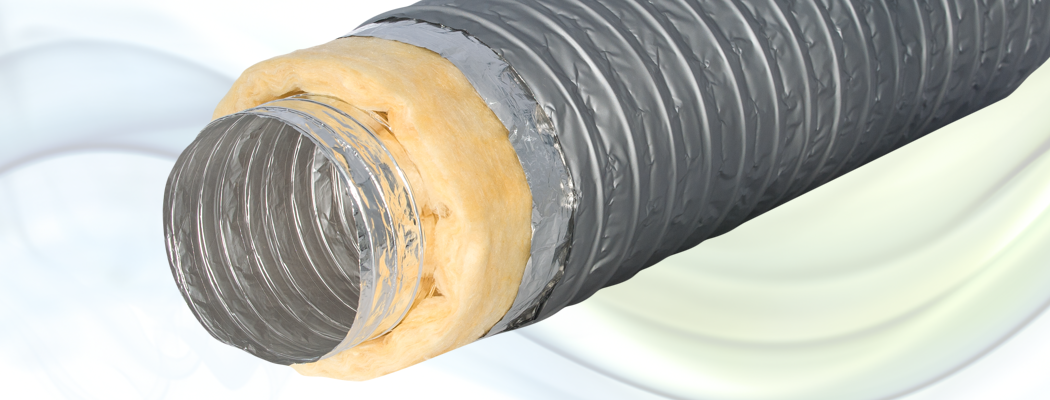

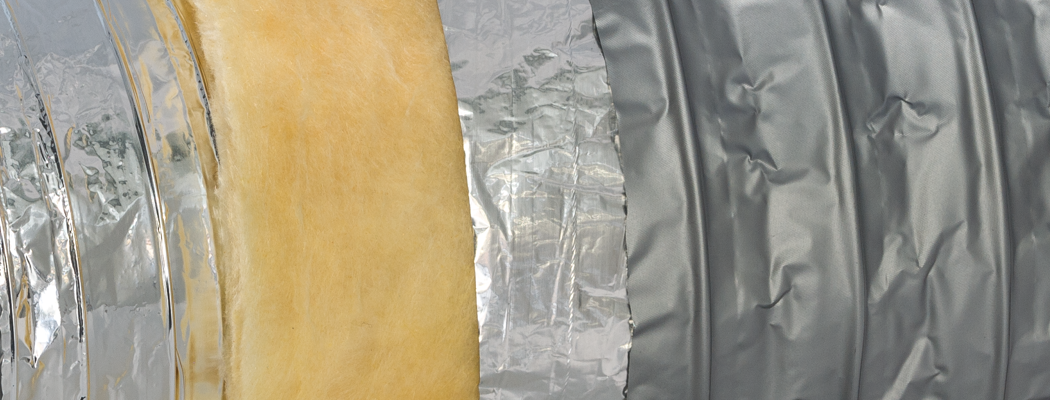

Product images
|
|
|---|---|
NEN 13180 |
|---|
The Isodec 250 + Combi 2100 fulfills all the requirements and are classified as specified within NEN 13180: "Ventilation for buildings – Ductwork - Dimensions and mechanical requirements for flexible ducts". |
 |
 |
 |
 |
|---|---|---|---|
| 82 | DIXC1C082/6 | 1 | 76 |
| 102 | DIXC1C102/6 | 1 | 72 |
| 127 | DIXC1C127/6 | 1 | 66 |
| 152 | DIXC1C152/6 | 1 | 45 |
| 160 | DIXC1C160/6 | 1 | 32 |
| 180 | DIXC1C180/6 | 1 | 32 |
| 203 | DIXC1C203/6 | 1 | 32 |
| 229 | DIXC1C229/6 | 1 | 24 |
| 254 | DIXC1C254/6 | 1 | 21 |
| 305 | DIXC1C305/6 | 1 | 15 |
| 315 | DIXC1C315/6 | 1 | 10 |
| 356 | DIXC1C356/6 | 1 | 8 |
| 406 | DIXC1C406/6 | 1 | 8 |
| 457 | DIXC1C457/6 | 1 | 6 |
| 508 | DIXC1C508/6 | 1 | 6 |
C (color code): G = grey, B = black and W = white
