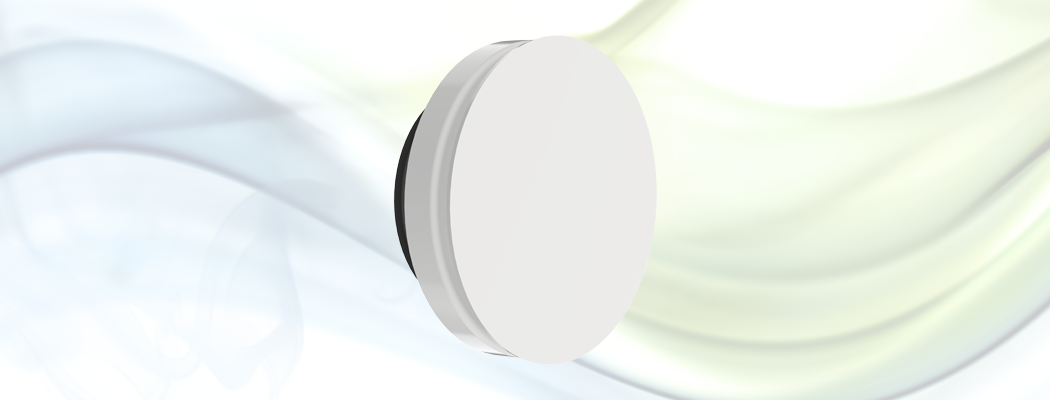

FLOW-GO supply air valve
The FLOW-GO is aerodynamically shaped, ABS supply air valve with EPDM gasket RAL 9003. The Flow-go has excellent properties in terms of noise level, pressure drop and air performance. It is suitable for high and low flow rates, the direction of the air distribution and the volume flow are adjustable.
characteristics
- quick and easy to install
- very low noise level
- good adjustment features
- airflow is easy to measure
construction

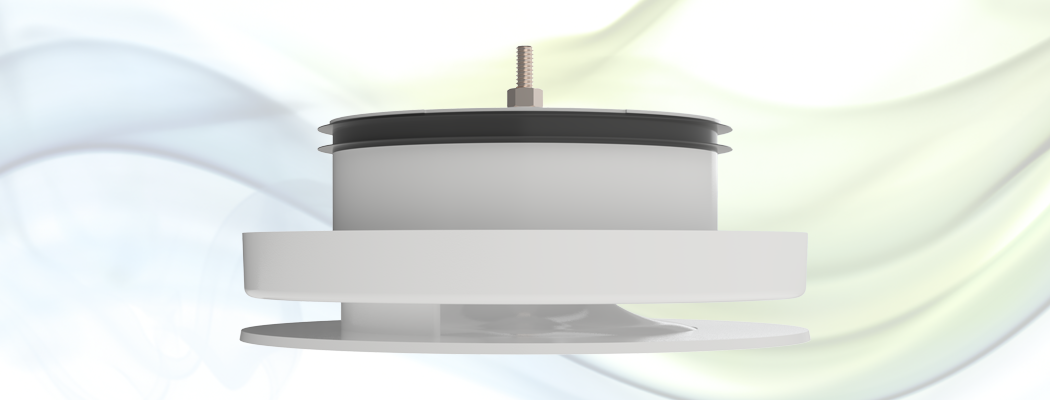

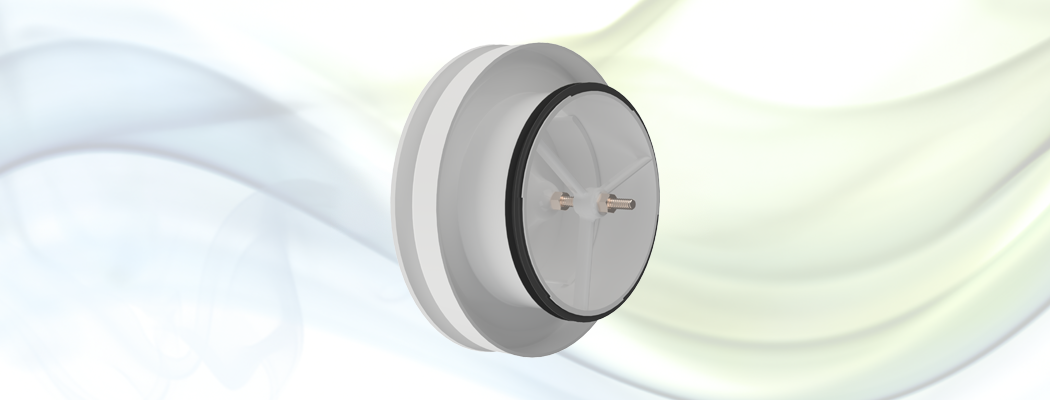

The air valve is made of white (RAL 9003) recyclable ABS, having a melting point between 200-250 °C. The diffuser is resistant to temperatures from 0 °C to 100 °C without deformation. The materials used are resistant to most chemicals in small concentrations.
|
Specifications |
|
|---|---|
| material valve: | ABS |
| material gasket tape: | EPDM gasket |
| temperature range: | 0 °C to 100 °C |
| protection against corrosion: | n.a. |
| diameter range: | 100-125 mm |
| appearance: | white (RAL 9003) |
|
Technical specifications |
|
|---|---|
Dutch specification |
|
German specification |
|
English specification |
|
French specification |
|
Swedish specification |
|
Polish specification |
|
Product images
|
|
|---|---|
|
Certificates |
||
|---|---|---|
not available |
 |
 |
 |
 |
|---|---|---|---|
| 100 | FLOWGO100R9003 | 48 | |
| 125 | FLOWGO125R9003 | 36 |
