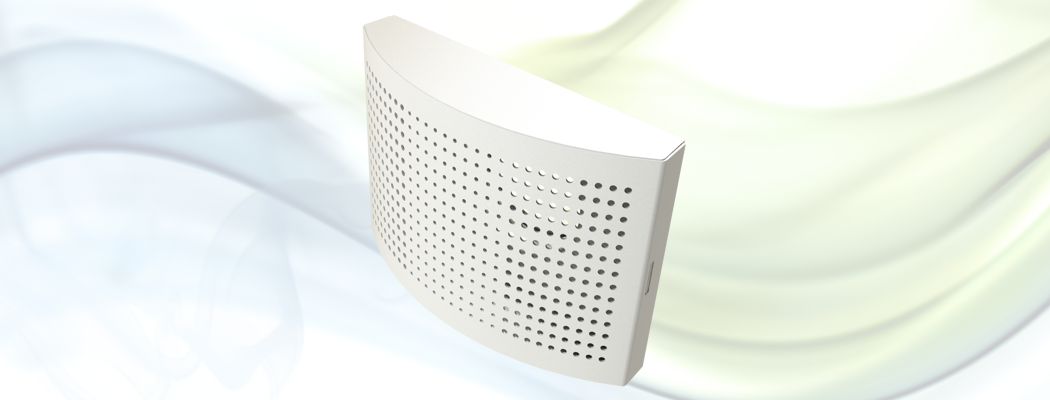

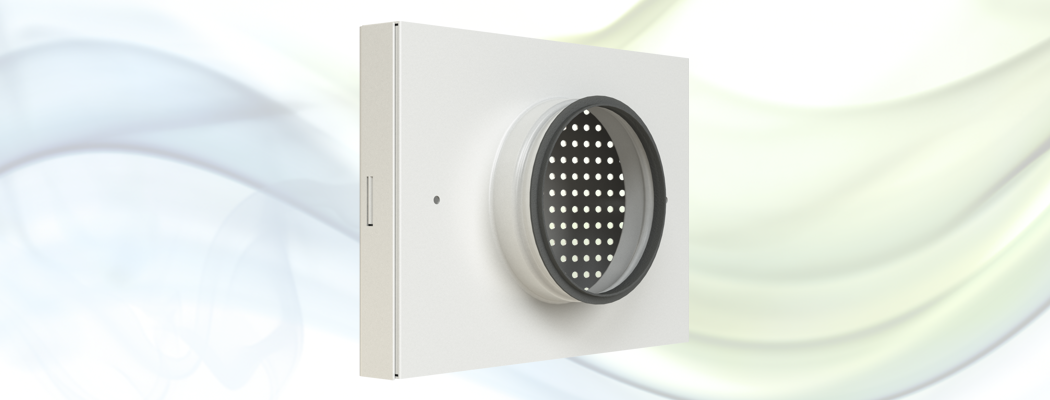

DTQA supply air valve

The design air valve DTQA is a very quiet supply air valve which can be mounted on wall and also close to the ceiling. It is suitable for air distribution in offices, houses and rooms where wall mounting is required. It can be mounted to the wall and also close to the ceiling.

The DTQA has a removable front plate for easy cleaning, measuring and adjustment of the air flow.

characteristics

• very low noise level
• can be mounted close to the ceiling
• removable front plate for easy cleaning, measuring and adjustment of air flow

construction

The DTQA is made of galvanized steel sheet, SS 1151, and meets the requirements for corrosive class C2 in accordance with SS-EN ISO 12944-2. The diffusers are powder-coated, which gives a high surface finish and good impact and scratch resistance.

Standard color is white RAL 9010, matt 70. Other colors available on request with a minimum order quantity and different delivery times.
